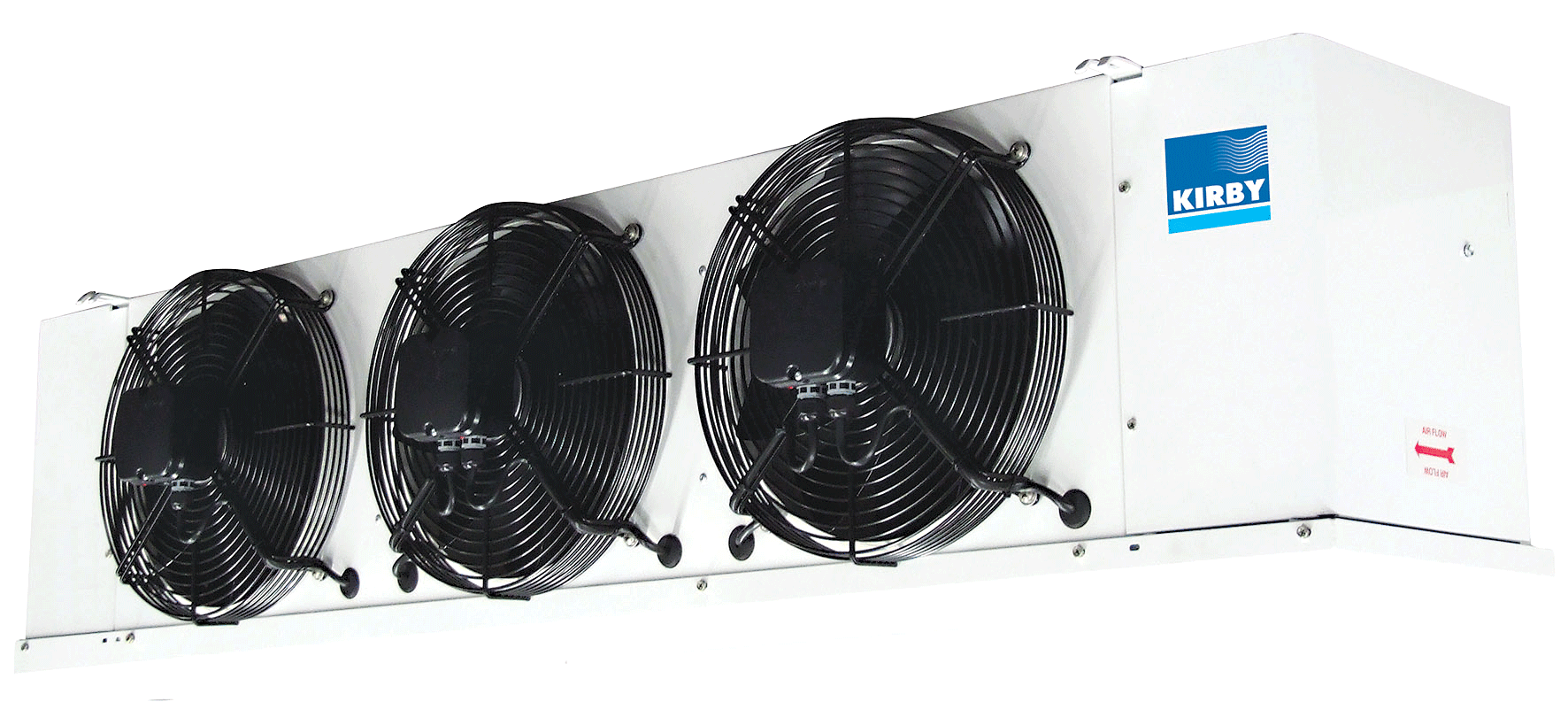

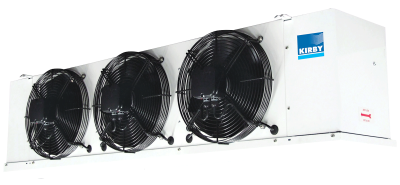

Unit Cooler 3X350 Fan 5R White
![Kirby](https://www.realcold.co.nz/media/c9/e8/1b/1723627128/Kirby-Logo.jpg)
Product code:
KMT121W
Manufacturer code
KMT121W
Product Group : | KMT Medium Temp Evaporators |
---|
General
Product Group : | KMT Medium Temp Evaporators |
---|
Capacity R404A
R404A Capacity @ -4SST/6KTD : | 12100 W |
---|
Connections
Liquid Line Connection : | 12.7 mm |
---|---|
Suction Line Connection : | 25.4 mm |
Description
Short Description : | The Kirby® 9000 Series Evaporator offers:• Simplified installation including factory wiring on all models for fans and heaters (excludes controls).• High airflow from the latest generation fan assemblies ensures efficient pull down and air throw |
---|
Fan
Fan Size : | 350 mm |
---|---|
Number Of Fans : | 3 |
Logistical Information
Gross Weight : | 47.6 kg |
---|
Measurements
Depth : | 470 mm |
---|---|
Height : | 545 mm |
Length : | 2060 mm |
Weight : | 47.6 kg |
Product information
The Kirby® 9000 Series Evaporator has been specifically designed to overcome the usual limitations of a typical compact coil design. This low frost innovation uses a unique fin pattern to minimise latent load and maximise sensible load. Enhanced fin configuration means less moisture removal and vastly improved run times before ice formation.By increasing the ratio of fin surface to tube surface, the Kirby 9000 Series Evaporator maintains airflow as ice builds up and the coil is able to hold ice for longer. The result is more stable room conditions and longer time between defrosts as well as greater energy efficiency
File name | Extension | Size |
---|---|---|
Brochures | 1.85 MB |
Product Number | Manufacturer product number | Technical data | Price | Availability |
---|---|---|---|---|
