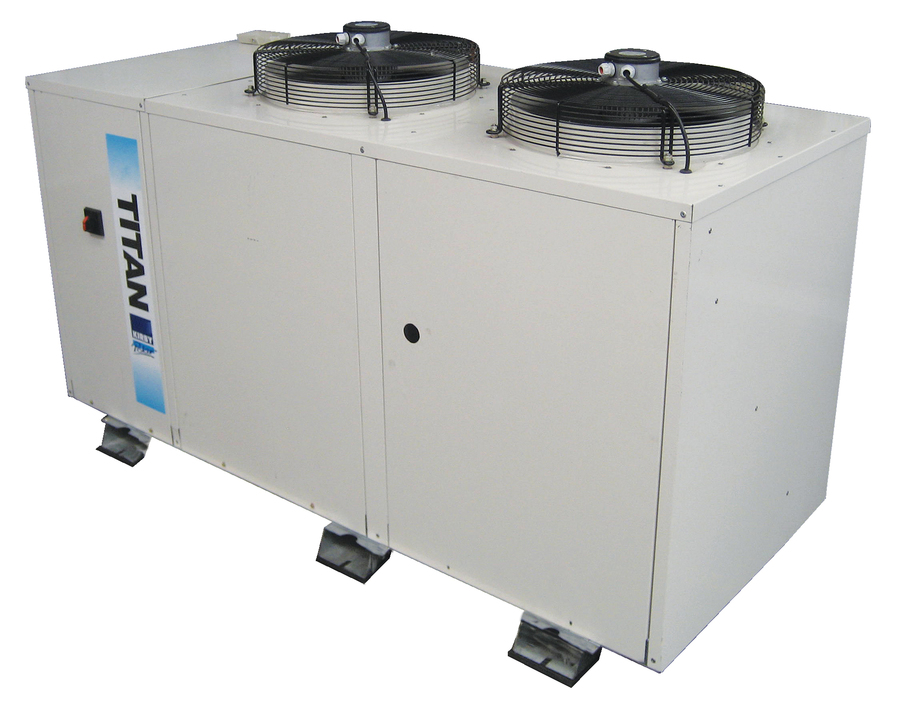

TitanPack 170MHA1
Product code:
CK4273
Manufacturer code
BDK01045
| Product Group : | Outdoor Hermetic Condensing Units |
|---|
General
| Product Group : | Outdoor Hermetic Condensing Units |
|---|
Additional Info
| Crankcase Heater Provided : | Yes |
|---|---|
| Family : | Titan Hermetic |
| HP Control Device Provided : | Yes |
| Liquid Line Fitted With Shut Off Valve : | Yes |
| Liquid Line Provided : | Yes |
| Suction Valve Provided : | Yes |
Air Volume/Air Flow
| Air Flow : | 2630 L/s |
|---|
Capacity
| Capacity Control : | No |
|---|
Compressor
| Compressor Model : | MTZ100-4VM |
|---|---|
| Compressor Type : | Hermetic |
| Number Of Compressors : | 1 |
| Number Of Phases (Compressor) : | 3 |
| Power Supply Compressor : | 380-400/3/50 V/Ph/Hz |
Connections
| Pipe Diameter Gas Side : | 34.92 mm |
|---|---|
| Pipe Diameter Liquid Side : | 15.88 mm |
Driers
| Liquid Injection : | No |
|---|
Electrical
| LRA : | 93.1 A |
|---|---|
| MCC : | 25.1 A |
| RLA : | 15.9 A |
Fan
| Fan Blade Size : | 450 mm |
|---|---|
| Fan Diameter : | 450 mm |
| Number Of Fans : | 2 |
General Information
| Receiver Volume : | 14.5 L |
|---|
Measurements
| Depth : | 840 mm |
|---|---|
| Height : | 1094 mm |
| Net Weight : | 235 kg |
| Width : | 1846 mm |
Oil
| Oil Type : | POE |
|---|
R134A Performances
| R134a Cooling Capacity Rated -5°C : | 9.785 kW |
|---|---|
| R134a Cooling Capacity Rated -10°C : | 7.585 kW |
| R134a Cooling Capacity Rated -15°C : | 5.705 kW |
| R134a Cooling Capacity Rated 0°C : | 12.30 kW |
| R134a Cooling Capacity Rated 5°C : | 15.135 kW |
R448A/R449A Performances
| R448A/R449A Cooling Capacity -10°C : | 11.270 kW |
|---|---|
| R448A/R449A Cooling Capacity 0°C : | 17.120 kW |
| R448A/R449A Cooling Capacity 5°C : | 20.450 kW |
R452A Performances
| R452A Cooling Capacity Rated -10°C : | 13.270 kW |
|---|---|
| R452A Cooling Capacity Rated -25°C : | 6.460 kW |
Sound Power/Pressure
| Sound Power at 50 Hz : | 85 dB(A) |
|---|
Switch
| HP Safety Switch Provided : | Yes |
|---|---|
| LP Safety Switch Provided : | Yes |
Product information
HUGE CAPACITY AND MAXIMUM PERFORMANCE IN HARSH CONDITIONSA tough, compact and robust commercial condensing unit, the Kirby Titan offers impressive performance and capacity within a small footprint. Pre-wired for convenient installation, Kirby Titan range thrives in harsh ambient conditions and under heavy loads. Being a fully enclosed system, it can be installed indoors or outside. And because it’s from Kirby, Titan has an enviable reputation for toughness, efficiency and reliability. KEY FEATURESImpressive capacity ranging from 12kW to 41kW Enhanced compressor technology Designed for harsh conditions up to 45°C Quiet and efficient operations Easy to service Fast installation Fully pre-wired Fan speed control Coil protection as standard
