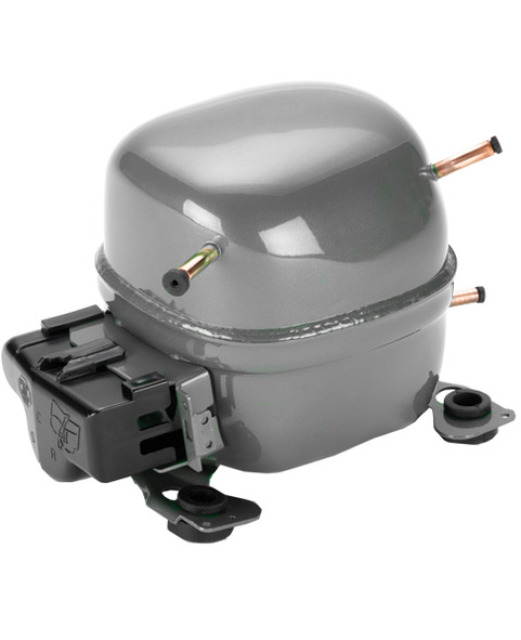

THB4419Y Comp R134A 1PHT/T CSIR
Product code:
C0512
Manufacturer code
2084133174
General Information
| Product Group : | Hermetic |
|---|---|
| Application : | HBP |
| Cylinder Volume : | 4.23 cm³ |
| Mounting Details : | 170x70 |
Additional Info
| Crankcase Heater Provided : | No |
|---|
Capacity R134a
| R134a Capacity -5°C : | 0.26 kW |
|---|---|
| R134a Capacity -10°C : | 0.2 kW |
| R134a Capacity 0°C : | 0.33 kW |
Compressor
| Direct Expansion Mode : | Capillary/Thermostatic |
|---|---|
| Displacement : | 5.0 m³/h |
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
Connections
| Connection Type : | Tube |
|---|---|
| Discharge Connection Size : | 1/4 in |
| Discharge Line Connection : | 3/16 in, 4.76 mm |
| Discharge Line Connection Type : | Tube |
| Suction Connection Size : | 1/4 in |
| Suction Line Connection : | 1/4 in, 7.35 mm |
| Suction Line Connection Type : | Tube |
Cooling Capacity R134a
| R134a Cooling Capacity Rated -10°C : | 0.20 kW |
|---|
Electrical
| LRA : | 8.5 A |
|---|---|
| Max Current : | 1.63 A |
| Power Supply : | 240/1/50 V/Ph/Hz |
Material
| Connection Material : | Copper-plated steel |
|---|
Measurements
| Height : | 172 mm |
|---|---|
| Length : | 183 mm |
| Net Weight : | 7.4 kg |
| Weight : | 7.79 kg |
| Width : | 150 mm |
Motor
| Motor Type : | CSIR |
|---|
Oil
| Oil Charge : | 0.25 dm³ |
|---|---|
| Oil Quantity : | 250 dm³ |
| Oil Type : | POE |
Power Input R134a
| R134a Power Input -10°C : | 0.15 kW |
|---|
Refrigerant
| Refrigerant : | R134a, R513A |
|---|
Starting Device
| Starting Device Mode : | CSIR |
|---|---|
| Starting Device Provided : | Yes |
Valves
| Expansion Device : | C-V |
|---|
Product information
Compressor THB4419Y
