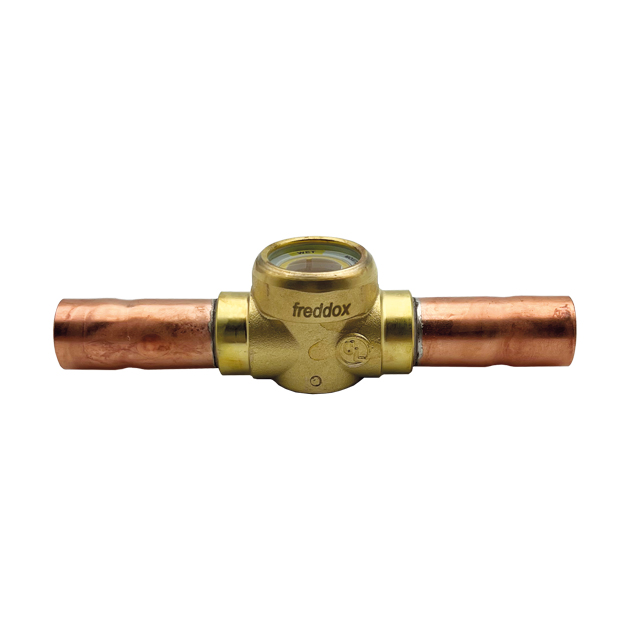

Sight Glass HSG78S 7/8" Solder
Product code:
FD2722
Manufacturer code
49407
| Product Group : | Sight Glasses |
|---|
General
| Product Group : | Sight Glasses |
|---|
Connections
| Connection Size : | 7/8 in |
|---|---|
| Connection Type : | Solder |
| Inlet Connection Size : | 7/8 in |
| Inlet Connection Type : | Solder |
| Outlet Connection Size : | 7/8 in |
| Outlet Connection Type : | Solder |
General Information
| Model Number : | HSG78S |
|---|
Material
| Body Material : | Brass |
|---|---|
| Connection Material : | Copper |
Measurements
| Height : | 37.5 mm |
|---|---|
| Length : | 151 mm |
| Net Weight : | 0.306 kg |
| Width : | 31.5 mm |
Pressure
| Max Operating Pressure : | 45 Bar |
|---|
Refrigerant
| Refrigerant : | HCFC, HFC, HFO |
|---|
Standards
| Approval Standard : | UKCA, UL |
|---|
Temperature
| Max Temperature : | +120 °C |
|---|---|
| Min Temperature : | -40 °C |
Valves
| Direction : | Bi-Flow |
|---|
Product information
Freddox HSG sight glasses are moisture and liquid indicators determining the state of the refrigerant and the filter drier for commercial refrigeration, industrial refrigeration and air conditioning installation. They are manufactured in a sealed hermetic unit with their lens housed inside the brass body to avoid any possible refrigerant leaks. Freddox sight glasses are suitable with main refrigerants as HCFC, HFC, HFO and HFO/HFC mixtures, and HC up to 45 bar. They are available with brazed or flare connexions from 1/4” (6mm) to 1”1/8 (28mm).
