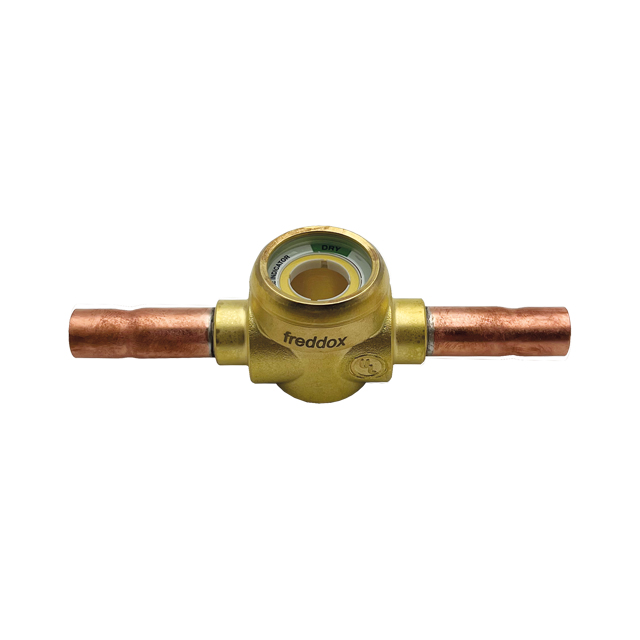

Sight Glass HSG14S 1/4" Solder
Product code:
FD2702
Manufacturer code
49402
Product Group : | Sight Glasses |
---|
General
Product Group : | Sight Glasses |
---|
Connections
Connection Size : | 1/4 in |
---|---|
Connection Type : | Solder |
Inlet Connection Size : | 1/4 in |
Inlet Connection Type : | Solder |
Outlet Connection Size : | 1/4 in |
Outlet Connection Type : | Solder |
General Information
Model Number : | HSG14S |
---|
Material
Body Material : | Brass |
---|---|
Connection Material : | Copper |
Measurements
Height : | 22 mm |
---|---|
Length : | 113 mm |
Net Weight : | 0.116 kg |
Width : | 31.5 mm |
Pressure
Max Operating Pressure : | 45 Bar |
---|
Refrigerant
Refrigerant : | HCFC, HFC, HFO |
---|
Standards
Approval Standard : | UKCA, UL |
---|
Temperature
Max Temperature : | +120 °C |
---|---|
Min Temperature : | -40 °C |
Valves
Direction : | Bi-Flow |
---|
Product information
Freddox HSG sight glasses are moisture and liquid indicators determining the state of the refrigerant and the filter drier for commercial refrigeration, industrial refrigeration and air conditioning installation. They are manufactured in a sealed hermetic unit with their lens housed inside the brass body to avoid any possible refrigerant leaks. Freddox sight glasses are suitable with main refrigerants as HCFC, HFC, HFO and HFO/HFC mixtures, and HC up to 45 bar. They are available with brazed or flare connexions from 1/4” (6mm) to 1”1/8 (28mm).
File name | Extension | Size |
---|---|---|
Brochures | 1.75 MB | |
User Manual | 2.26 MB |
