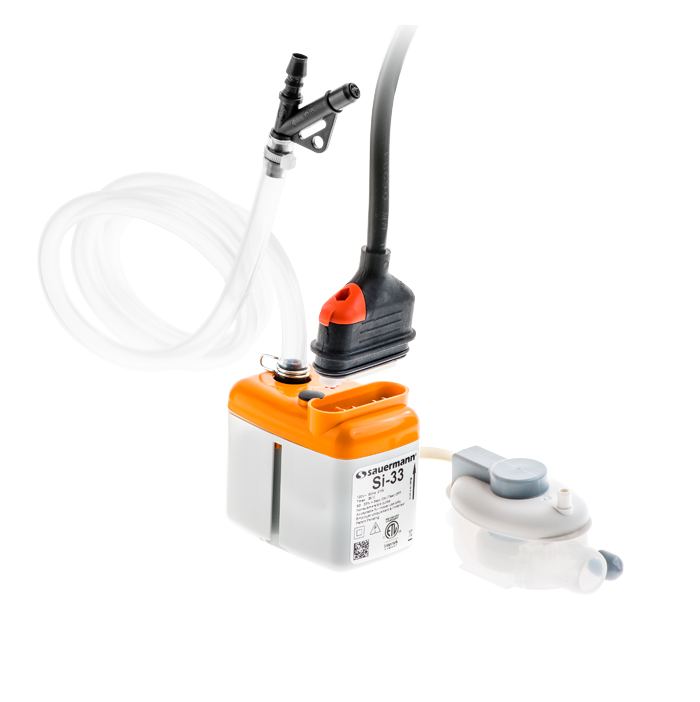

Si-33 Condensate Pump
Product code:
T0950
Manufacturer code
SI33CE01UN23
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Additional Info
| Family : | SI |
|---|
Alarm
| Alarm : | NF 8(A) |
|---|
Capacity
| Capacity : | 30 kW |
|---|
Condensate Pumps
| Max Discharge Head : | 13 m |
|---|---|
| Max Flow Rate : | 30 L/h |
| Max Suction Head : | 4 m |
| Tank Dimension : | 38x55x38 mm |
Description
| Short Description : | mini pump with float detection |
|---|
Electrical
| IP Class : | IP20 |
|---|---|
| Power Input : | 21 W |
| Power Supply : | 230/1/50-60 V/Ph/Hz |
General Information
| Detection Level OFF : | 11 mm |
|---|---|
| Detection Level ON : | 16 mm |
| Detection Level Safety : | 19 mm |
| Max Lift : | 18 m |
| Model Number : | SI33CE01UN23 |
Measurements
| Height : | 60 mm |
|---|---|
| Length : | 66 mm |
| Weight : | 0.48 kg |
| Width : | 44 mm |
Sound Power/Pressure
| Pump Sound Level In App : | 36 dB(A) |
|---|---|
| Sound Pressure Level : | 34 dB(A) |
| Sound Pressure Level LP 1 m : | 34 dB(A) |
Switch
| Safety Switch : | NC 8 A resistive - 250 V |
|---|
