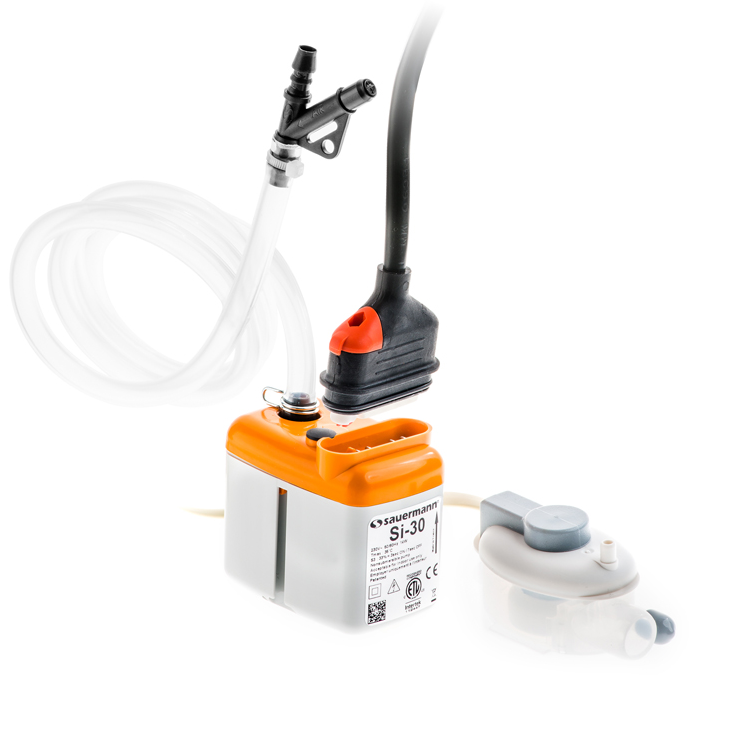

Si-30 Condensate Pump
Product code:
T0951
Manufacturer code
SI30CE01UN23
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Additional Info
| Family : | SI |
|---|
Alarm
| Alarm : | NF 8(A) |
|---|
Capacity
| Capacity : | 20 kW |
|---|
Condensate Pumps
| Max Discharge Head : | 10 m |
|---|---|
| Max Flow Rate : | 20 L/h |
| Max Suction Head : | 3 m |
| Tank Dimension : | 38x55x38 mm |
Connections
| Suction Connection Height : | 3 m |
|---|
Description
| Short Description : | Mini pump with float detection |
|---|
Electrical
| IP Class : | IP20 |
|---|---|
| Power Input : | 14 W |
| Power Supply : | 230/1/50 V/Ph/Hz |
Features
| Thermal Protection : | 90 °C |
|---|
General Information
| Detection Level OFF : | 11 mm |
|---|---|
| Detection Level ON : | 16 mm |
| Detection Level Safety : | 19 mm |
| Max Lift : | 14 m |
| Max Pump Capacity : | 20 L/h |
| Model Number : | SI30CE01UN23 |
| Pump Capacity : | 20 L/h |
Measurements
| Height : | 60 mm |
|---|---|
| Length : | 66 mm |
| Weight : | 0.48 kg |
| Width : | 44 mm |
Sound Power/Pressure
| Pump Sound Level In App : | 27 dB(A) |
|---|---|
| Sound Pressure Level : | 20 dB(A) |
| Sound Pressure Level LP 1 m : | 20 dB(A) |
Switch
| Safety Switch : | NC 8 A resistive - 250 V |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 829.66 KB |
