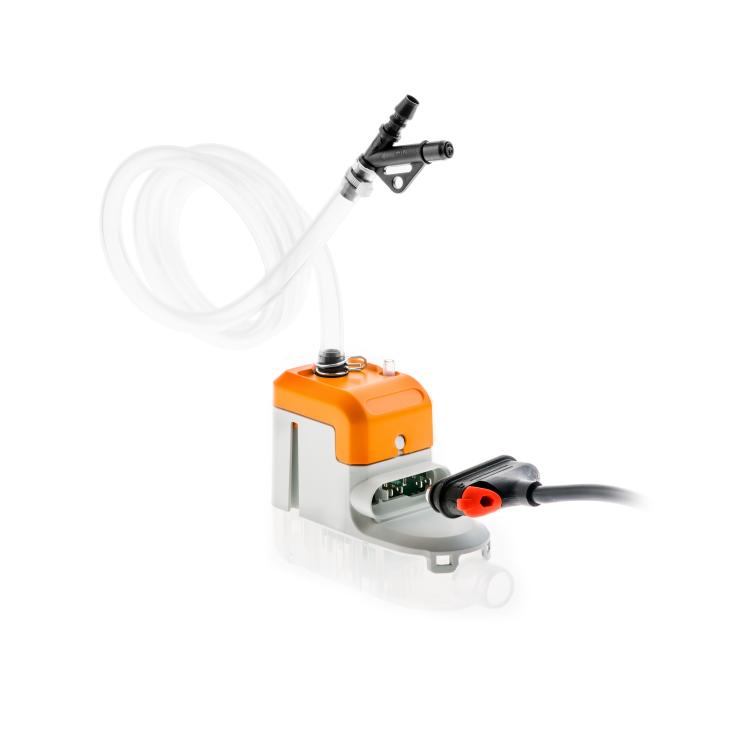

Sauermann SI10 Universal Replacement kit - pump/tube/bracket/cable/install kit
Product code:
T0948
Manufacturer code
SI10CE03UN23
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Alarm
| Alarm : | 8(A) |
|---|
Capacity
| Capacity : | 20 kW |
|---|
Condensate Pumps
| Max Discharge Head : | 10 m |
|---|---|
| Max Flow Rate : | 19 L/h |
Connections
| Suction Connection Height : | 2 m |
|---|
Electrical
| IP Class : | IPX4 |
|---|---|
| Power Input : | 14 W |
| Power Supply : | 230/1/50 V/Ph/Hz |
Features
| Thermal Protection : | 90 °C |
|---|
General Information
| Detection Level OFF : | 13 mm |
|---|---|
| Detection Level ON : | 18 mm |
| Detection Level Safety : | 21 mm |
| Max Lift : | 14 m |
| Model Number : | SI10CE03UN23 |
| Pump Capacity : | 20 L/h |
Measurements
| Height : | 76 mm |
|---|---|
| Length : | 96 mm |
| Weight : | 0.41 kg |
| Width : | 44 mm |
Sound Power/Pressure
| Sound Pressure Level : | 23 dB(A) |
|---|---|
| Sound Pressure Level LP 1 m : | 22 dB(A) |
Switch
| Safety Switch : | NC 8A resistive - 250 V |
|---|
Temperature
| Max Condensate Temperature : | 35 °C |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 809.17 KB |
