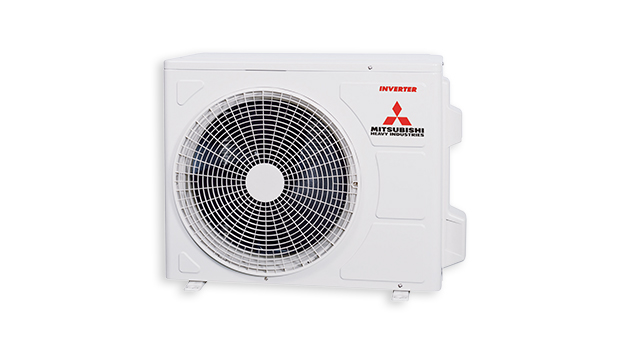

MHI Ciara 3.3KW DXC12ZTLA-W
Product code:
AC3093/O
Manufacturer code
DXC12ZTLA-W
General Information
| Product Group : | High Wall |
|---|---|
| Pre-Equipped Wifi : | Yes |
Additional Info
| Family : | Ciara |
|---|---|
| Indoor/ Outdoor/ Other : | Outdoor |
| Indoor Units Connectable (Quantity) : | 1 |
| Single Split / Multi Split : | Single Split |
Connections
| Connection Size : | 6.35 mm |
|---|---|
| Connection Size 2 : | 9.52 mm |
Electrical
| Max Current : | 9.0 A |
|---|---|
| Voltage : | 240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 4.22 |
|---|---|
| EER : | 3.67 |
Outdoor Unit Attributes
| Depth (OU) : | 275 mm |
|---|---|
| Height (OU) : | 540 mm |
| Length (OU) : | 645 mm |
| Weight (OU) : | 24 kg |
Pipes
| Chargeless Piping Length : | 10 m |
|---|---|
| Max Height Difference : | 15 m |
| Max Height Difference (Outdoor is Higher/Lower) : | 15 m |
| Max Pipe Length Without Additional Refrigerant : | 10 m |
| Max Piping Length : | 20 m |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 0.59 kg |
Sound Power/Pressure
| Sound Pressure Level : | 50 dB(A) |
|---|
