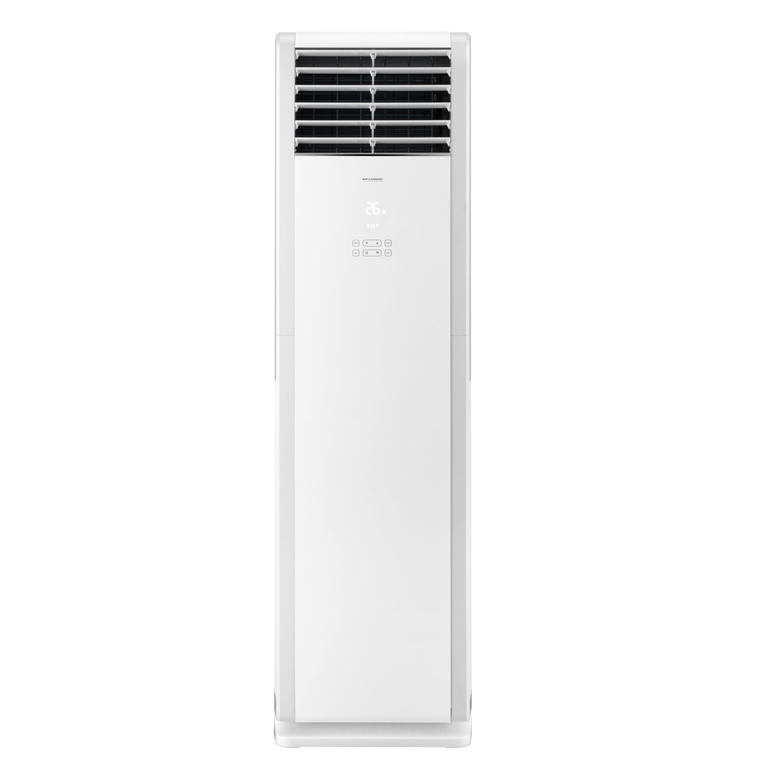

Gree T-Fresh Floor 9.4kW Indoor unit
Product code:
AC7430/I
Manufacturer code
GVH32ALXH-K6DNC7A/I
| Product Group : | Floor Console |
|---|
General
| Product Group : | Floor Console |
|---|
Additional Info
| Family : | GVH |
|---|---|
| Indoor/ Outdoor/ Other : | Indoor |
| Single Split / Multi Split : | Single split |
Air Volume/Air Flow
| Air Flow : | 514 L/s |
|---|
Cable
| Recommended Power Cable : | 4 Core |
|---|
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 1/4 in |
Connectivity
| Pre-Equipped Wifi : | Yes |
|---|
Cooling Capacity
| Cooling Capacity : | 9.4 kW |
|---|
Electrical
| Current (Cooling) : | 11.5 A |
|---|---|
| Current (Heating) : | 13.5 A |
| Fuse Protection : | 25 A |
| Input (Cooling) : | 2.73 kW |
| Input (Heating) : | 3.02 kW |
| Max Current : | 13.5 A |
| Phase : | 1 |
| Power Supply : | 220-240/1/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.4 |
|---|---|
| EER : | 3.66 |
General Information
| Colour : | White |
|---|---|
| Condensate Water Pump Provided : | No |
| Dehumidification : | 5.0 L/h |
| Remote Control Provided : | No |
Heating Capacity
| Heating Capacity : | 10.3 kW |
|---|
Indoor Unit Attributes
| Depth (IU) : | 394 mm |
|---|---|
| Height (IU) : | 1882 mm |
| Net Weight (IU) : | 57 kg |
| Weight (IU) : | 57 kg |
| Width (IU) : | 587 mm |
Pipes
| Max Height Difference : | 10 m |
|---|---|
| Max Height Difference (Outdoor is Higher/Lower) : | 10 m |
| Max Pipe Length Without Additional Refrigerant : | 10 m |
| Max Pipe Run : | 25 m |
| Refrigerant Pipe Size Gas : | 5/8 in |
| Refrigerant Pipe Size Liquid : | 1/4 in |
| Total Pipe Length Range : | 25 m |
R32 Performances
| R32 Power Input Rated Cooling : | 2.73 kW |
|---|---|
| R32 Power Input Rated Heating : | 3.02 kW |
Refrigerant
| Additional Charge : | 40 g/m |
|---|---|
| Refrigerant : | R32 |
| Refrigerant Charge : | 1.9 kg |
Sound Power/Pressure
| Sound Pressure Level : | 47 dB(A) |
|---|
Temperature
| Outdoor Operating Temp. Range (Cooling) : | -10 to 50 °C |
|---|---|
| Outdoor Operating Temp. Range (Heating) : | -15 to 24 °C |
Product information
The Gree T-Fresh Series offers a unique solution for everyone who wants to achieve a comfortable climate in larger spaces such as entrances, public areas, meeting rooms, shops and restaurants. Gree T-Fresh units adopt an elegant design, focusing on details like hidden LED displays, sealed air outlets when off and side accessed filters. T-Fresh also comes standard with Wi-Fi to allow you to control the unit from your smart phone or tablet. The T-Fresh also has a six year warranty backed by the worlds largest air conditioning/heat pump manufacturer.Key features of the system:Cooling Capacity: 10.0 kWHeating Capacity: 10.3 kW Automatic operationTurbo Cooling: Large air flow & rapid coolingAuto-Clean: Cross fan continues blowing to dry indoor unit inside after switched off, to keep clean and healthyTimer FunctionSet Temperature Range from 16°C to 30°CLED-DisplayAuto-Restart after power failureSide-drawing filter design for convenient cleaningRefrigerant R32Refrigerant-lacking protection
| File name | Extension | Size |
|---|---|---|
| Brochures | 410.37 KB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
SRF50ZSX-W
|
SRF50ZSXW Floor Standing Console 5.0kw R32 Hyper Inverter - 1ph.
|
Available after log in
|
Available after log in
|
|
|
GEH18AAK6DNA1FI
|

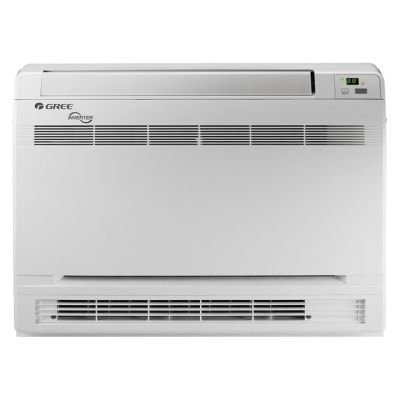

Gree R32 Inv Console 5.2kW Ind
|
Available after log in
|
Available after log in
|
|
|
GEH18AAK6DNA1FOwi
|
Gree R32 Inv Console 5.2kW Out
|
Available after log in
|
Available after log in
|
|
|
GVH32ALXH-K6DNC7A/I
|
Gree T-Fresh Floor 9.4kW Indoor unit
|
Available after log in
|
Available after log in
|
|
|
SRC50ZSXAW
|
MHI Avanti Plus SRC50ZSXA-W
|
Available after log in
|
Available after log in
|
|
|
|
Gree 10kW T Fresh Floor set
|
Available after log in
|
Available after log in
|
|
|
|

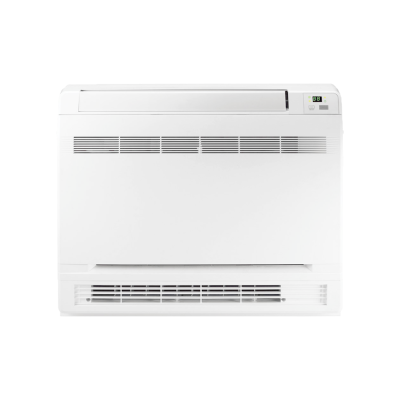

Gree 5.2kW Floor Console Set
|
