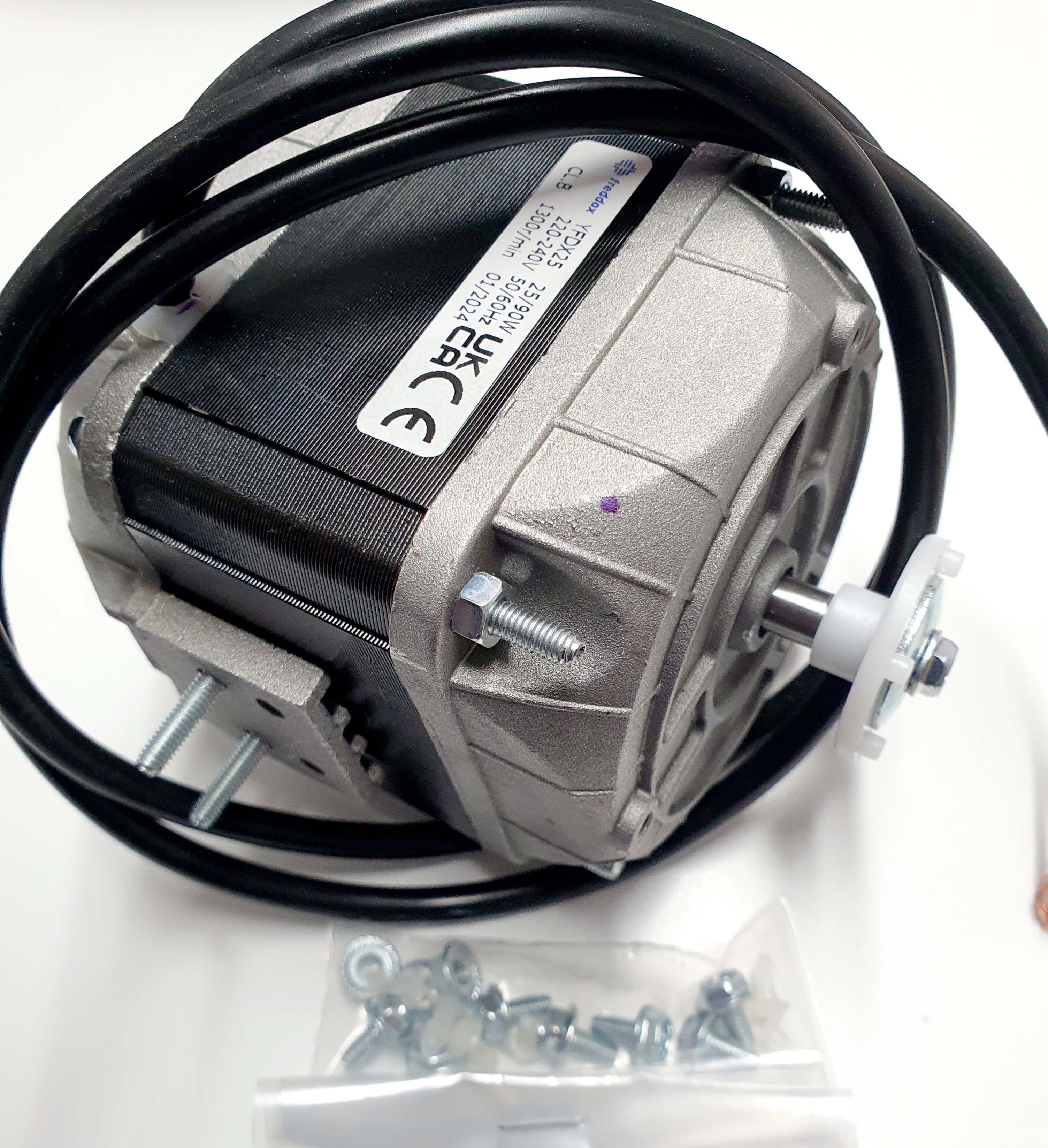

FREDDOX MULTIFIXING MOTOR 25W GEN.2
Product code:
D0125FD
Manufacturer code
YFDX25
| Product Group : | Shaded pole Motors |
|---|
General
| Product Group : | Shaded pole Motors |
|---|
Cable
| Cable Length : | 100 cm |
|---|
Electrical
| Amp : | 0.7 A |
|---|---|
| Frequency : | 50/60 Hz |
| IP Class : | IP42 |
| Input Voltage : | 220 - 240 V |
| Power Input : | 90 W |
| Watt : | 25 W |
Fan
| Disc Shape : | Round |
|---|---|
| Fan Blade Size : | 300 mm |
| Fan Diameter : | 300 mm |
| Fan Speed : | 1300 r/min |
Flanges
| Output Flange Dimension : | 25.4 mm |
|---|
General Information
| Model Number : | YFDX25 |
|---|---|
| Mounting Details : | Horizontal or Vertical |
| Mounting Method : | Bracket or Grille Type |
| Rotation Direction : | CCW |
Measurements
| Depth : | 112 mm |
|---|---|
| Height : | 99 mm |
| Length : | 83 mm |
| Net Weight : | 1.8 kg |
Motor
| Bearing Type : | Sleeve |
|---|
Temperature
| Operating Temperature Range : | -25-50 °C |
|---|---|
| Temperature Application : | -25 to 50 C |
Product information
Shaded Pole Motor
