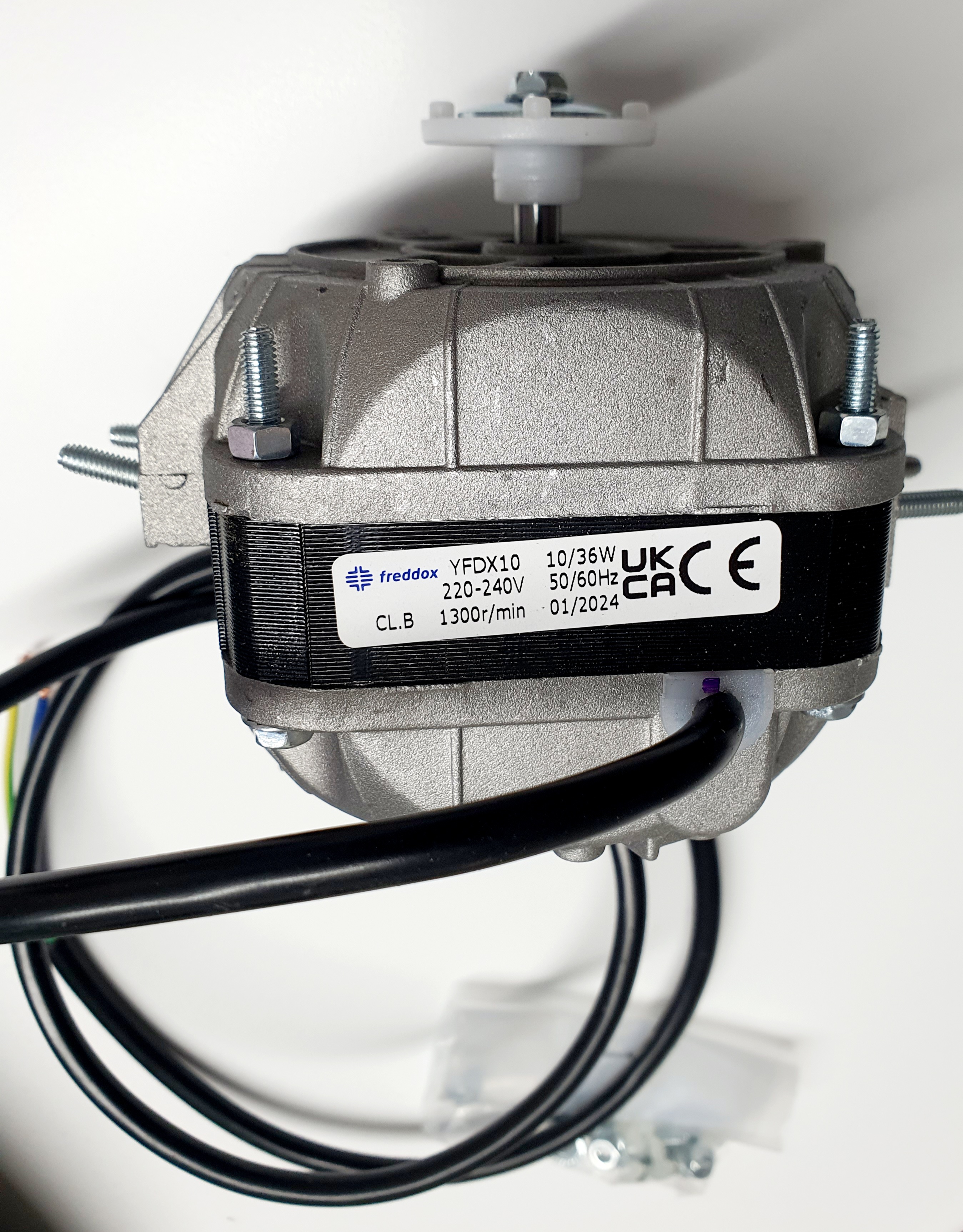

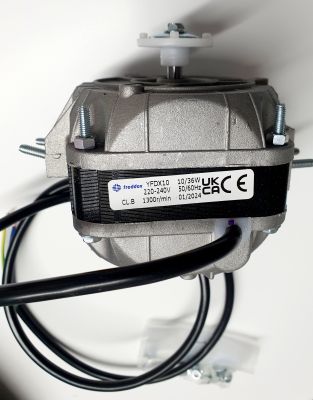

FREDDOX MULTIFIXING MOTOR 10W GEN.2
Product code:
D0123FD
Manufacturer code
YFDX10
| Product Group : | Shaded pole Motors |
|---|
General
| Product Group : | Shaded pole Motors |
|---|
Cable
| Cable Length : | 1000 mm |
|---|
Electrical
| Amp : | 0.25 A |
|---|---|
| Frequency : | 50/60 Hz |
| IP Class : | IP42 |
| Input Voltage : | 220 - 240 V |
| Power Input : | 36 W |
| Watt : | 10 W |
Fan
| Disc Shape : | Round |
|---|---|
| Fan Blade Size : | 230 mm |
| Fan Speed : | 1300 r/min |
Flanges
| Output Flange Dimension : | 25.4 mm |
|---|
General Information
| Model Number : | YFDX10 |
|---|---|
| Mounting Details : | Horizontal or Vertical |
| Mounting Method : | Bracket or Grille Type |
| Rotation Direction : | CCW |
Measurements
| Depth : | 87 mm |
|---|---|
| Height : | 99 mm |
| Length : | 83 mm |
| Net Weight : | 1.1 kg |
Motor
| Bearing Type : | Sleeve |
|---|
Temperature
| Operating Temperature Range : | -25-50 °C |
|---|
Product information
Freddox YFDX series motors are multi-fixing motors with single phase, 4 shade poles and running at rated voltage of 220-240V, 50/60Hz. They are widely used in refrigeration equipment including condensers, radiators and evaporators
| File name | Extension | Size |
|---|---|---|
| Brochures | 107.51 KB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|

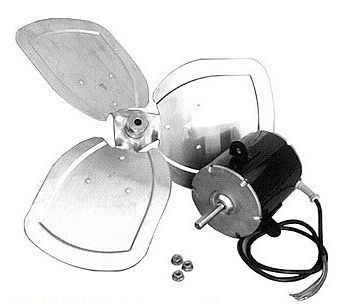

8668594
|
Tecumseh Fan Motor Assembly 365mm 230v 50hz 120w
|
Available after log in
|
Available after log in
|
|
|

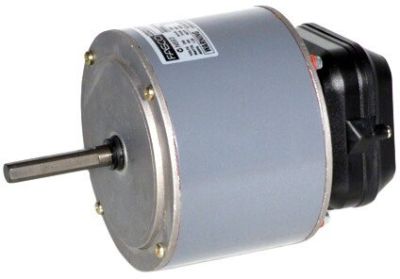

134-8554LTB-A80
|
180W MOTOR 1/2 SHAFT
|
Available after log in
|
Available after log in
|
|
|
M4Q045CA0338A01-CTN
|
FAN MOTOR 10W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045CF0138-CTN
|
FAN MOTOR 16W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045EA0138CTN
|
FAN MOTOR 25W 220V
|
Available after log in
|
Available after log in
|
|
|
M4Q045EF0138-CTN
|
FAN MOTOR 34WATT, 240V 50HZ
|
Available after log in
|
Available after log in
|
|
|

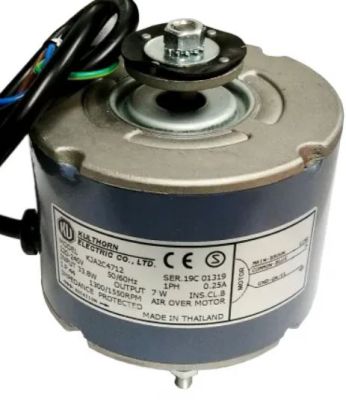

KJA2C4704
|
MOTOR FAN KU 7W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|

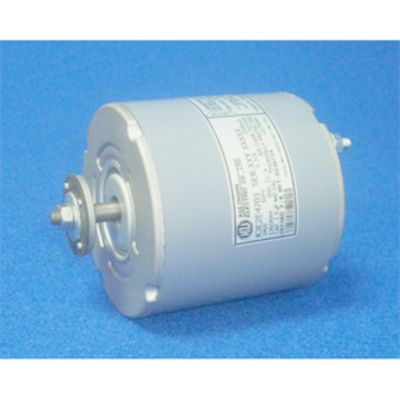

KJE2F4003
|
MOTOR FAN KU 40W
|
Available after log in
|
Available after log in
|
|
|

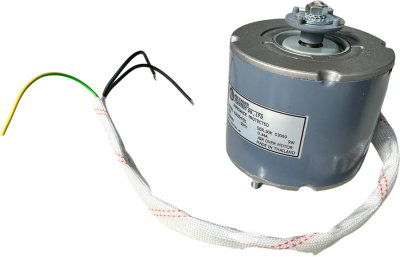

KJB2M4702
|
MOTOR FAN KEC 13W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|

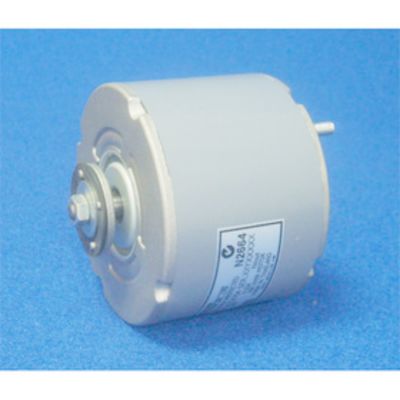

KJB2S4701
|
MOTOR FAN KEC 28W HUB-DRIVE
|
Available after log in
|
Available after log in
|
|
|

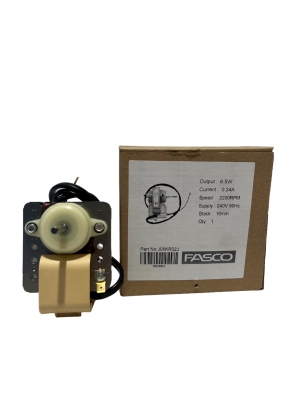

133-J05RF-11
|
879-83241W FAN MOTOR
|
Available after log in
|
Available after log in
|
|
|
YFDX10
|
FREDDOX MULTIFIXING MOTOR 10W GEN.2
|
Available after log in
|
Available after log in
|
|
|

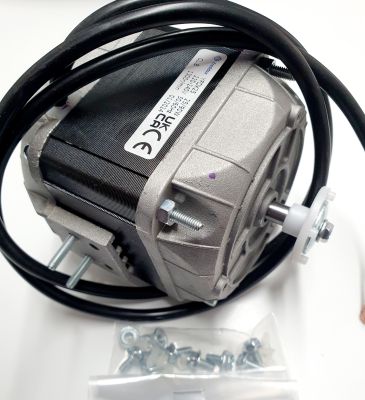

YFDX25
|
FREDDOX MULTIFIXING MOTOR 25W GEN.2
|
Available after log in
|
Available after log in
|
|
|

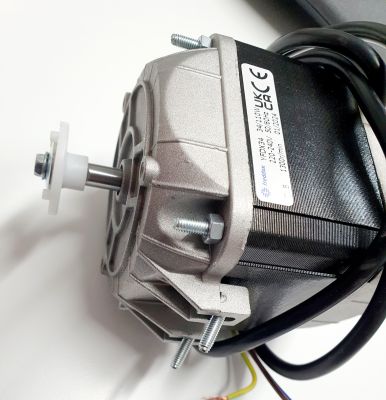

YFDX34
|
FREDDOX MULTIFIXING MOTOR 34W GEN.2
|
Available after log in
|
Available after log in
|
|
|

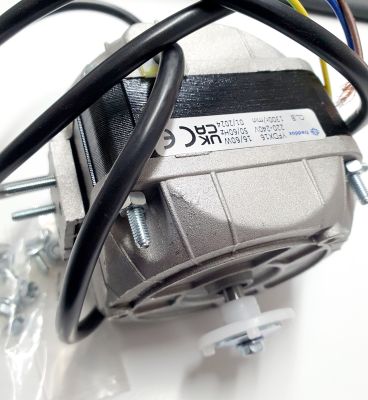

YFDX16
|
