FREDDOX ELECTRONIC CONTROL PANEL ECP-202 WITH PROBES
Product code:
G4610
Manufacturer code
6TL202EXPFR
| Product Group : | Electronic |
|---|
General
| Product Group : | Electronic |
|---|
Communication
| Communication Type : | RS485 |
|---|
Compressor
| Compressor Current Max : | 10 A |
|---|
Electrical
| AUX : | 2 |
|---|---|
| AUX Current : | 5 A |
| Frequency : | 50/60 Hz |
| IP Class : | IP65 |
| Voltage : | 230V~ ± 10% 50/60 Hz |
Fan
| Fan Current : | 2.7 A |
|---|
General Information
| Defrost : | 16 A (AC1) |
|---|---|
| Measuring Range : | -45 +99 °C |
| Model Number : | 202WCC |
| Mounting Details : | Vertical |
Inputs/Outputs
| Analog Outputs (AO) : | 4 |
|---|---|
| Digital Inputs (DI) : | 2 |
| Digital Outputs (DO) : | 2x 5A(AC1) |
Measurements
| Height : | 180 mm |
|---|---|
| Length : | 263 mm |
| Weight : | 1 kg |
| Width : | 96 mm |
Sensors
| Number Of Sensors : | 2 |
|---|---|
| Sensor Type : | NTC 10K 1% |
Temperature
| Temperature Range : | -45 +99 °C |
|---|
Product information

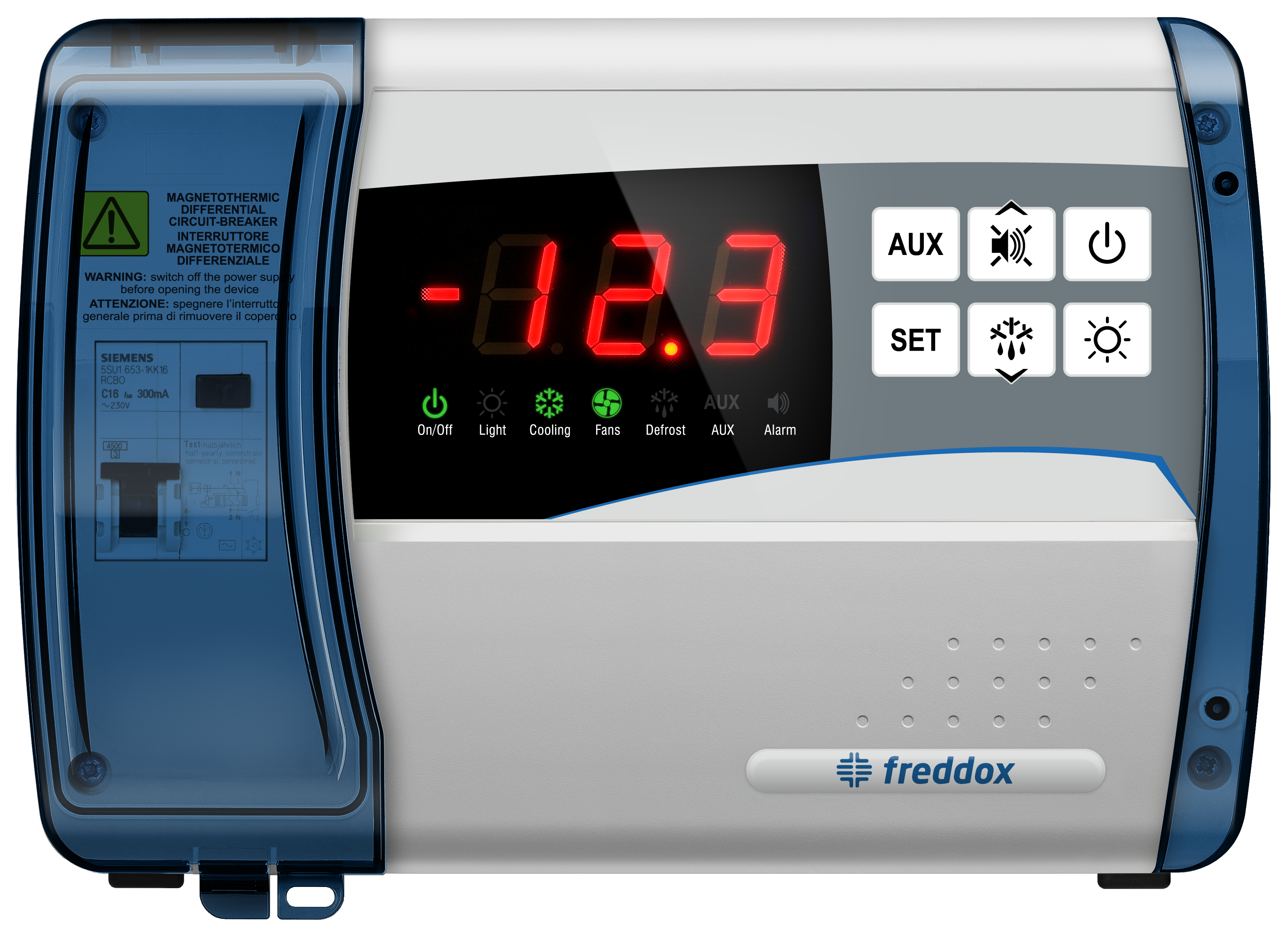

The Freddox 202 Expert multifunction Cold room controller can be used to control all the main components of a single-phase split refrigeration installation.It has been specially designed to reduce installation time for the installer, saving time and money.Equipped with a large temperature display, the 202 Expert Freddox Panel is also equipped with control and setting keys that are accessible from the front of the panel.The 7 LED indicators make it quick to view the status of the various components of the system
| File name | Extension | Size |
|---|---|---|
| Brochures | 514.98 KB |
