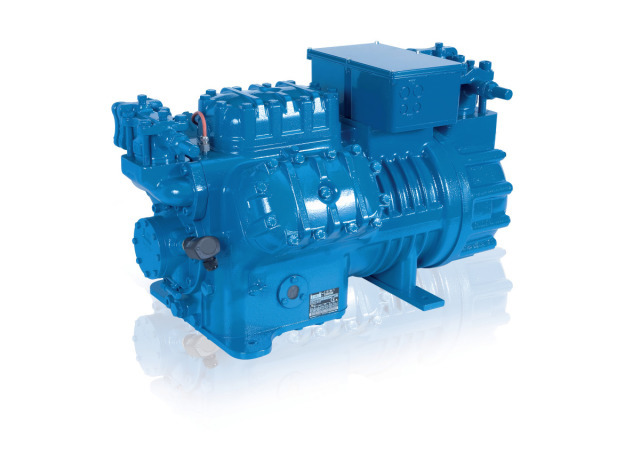

Frascold Z40-154Y Compressor
![Frascold](https://www.realcold.co.nz/media/a0/61/7b/1723627217/LOGO-Frascold.jpg)
Product code:
C5210
Manufacturer code
Z 40-154Y
Product Group : | Semi Hermetic |
---|
General
Product Group : | Semi Hermetic |
---|
Capacity
Effect : | 30.00 kW |
---|
Capacity R134a
R134a Capacity -10°C : | 50640 W |
---|
Capacity R404A
R404A Capacity -10°C : | 85700 W |
---|---|
R404A Capacity -30°C : | 35280 W |
R404A Capacity -35°C : | 26720 W |
Compressor
Displacement : | 154.1 m³/h |
---|
Connections
Discharge Line Connection : | 41.3 mm |
---|---|
Suction Line Connection : | 66.7 mm |
Electrical
LRA : | 159.2 A |
---|---|
Voltage : | 400/3/50 V/Ph/Hz |
General Information
Model Number : | Z 40-154 Y |
---|
Measurements
Height : | 536 mm |
---|---|
Weight : | 240 kg |
Motor
Motor Code : | B |
---|
Nominal Capacity R134a
R134a Nominal Capacity -5°C : | 55260 W |
---|
Nominal Capacity R404A
R404A Nominal Capacity -5°C : | 41360 W |
---|
Oil
Oil Charge : | 7200 cc |
---|
Product information
