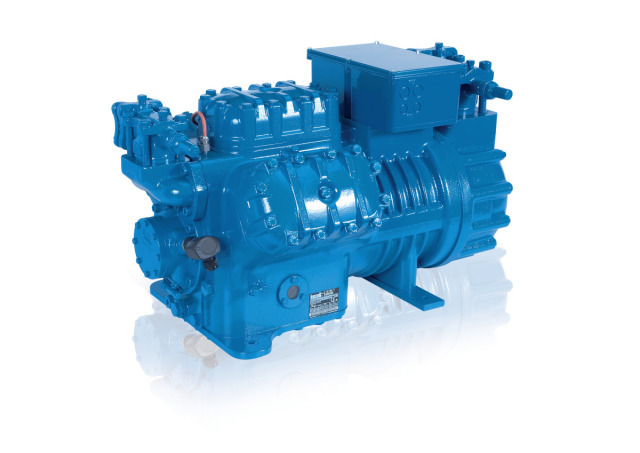

FRASCOLD Z30-126Y COMPRSSOR 30HP
Product code:
C5198
Manufacturer code
Z 30-126Y
General Information
| Product Group : | Semi Hermetic |
|---|---|
| Effect : | 22.00 kW |
| Model Number : | Z 30-126 Y |
Capacity R134a
| R134a Capacity -10°C : | 41480 W |
|---|
Capacity R404A
| R404A Capacity -30°C : | 28730 W |
|---|---|
| R404A Capacity -35°C : | 21710 W |
Compressor
| Displacement : | 125.7 m³/h |
|---|
Connections
| Discharge Line Connection : | 35 mm |
|---|---|
| Suction Line Connection : | 54 mm |
Electrical
| LRA : | 132.6 A |
|---|---|
| Voltage : | 400/3/50 V/Ph/Hz |
Measurements
| Height : | 536 mm |
|---|---|
| Weight : | 229 kg |
Motor
| Motor Code : | B |
|---|
Nominal Capacity R134a
| R134a Nominal Capacity -5°C : | 45710 W |
|---|
Nominal Capacity R404A
| R404A Nominal Capacity -5°C : | 30860 W |
|---|
Oil
| Oil Charge : | 7200 cc |
|---|
Product information
3/400/50 PWS
