COPPER TUBE3/8OD X 5M 0.76mm WT
Product code:
H0058
Manufacturer code
LF21633
| Product Group : | Copper Hard Drawn Tube |
|---|
General
| Product Group : | Copper Hard Drawn Tube |
|---|
Additional Info
| Additional Info : | Manufactured in accordance with AS1571 and conforms to AS/NZ5149.2016 |
|---|
Connections
| Connection Size : | 3/8 in, 9.53 mm, wall thickness 0.76 mm |
|---|
Description
| Short Description : | 3/8" 5992 Kpa x 5M copper tube Ref grade dehydrated and nitrogen charged |
|---|
Measurements
| Diameter : | 3/8 in |
|---|---|
| Length : | 5 m |
Pressure
| Max Operating Pressure : | 48 Bar |
|---|
Product information

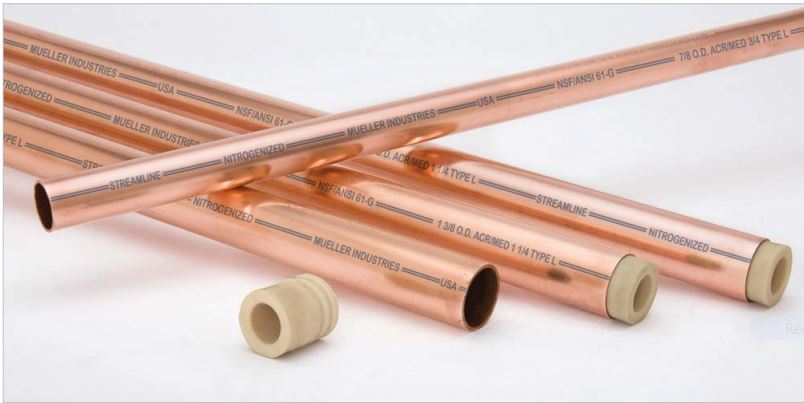

Mueller Nitrongenized 3/8 " x 5m Copper Tube
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 919.8 KB | |
| Technical Literature | 562.59 KB | |
| Brochures | 1.69 MB |
| Product Number | Manufacturer product number | Technical data | Price | Availability |
|---|---|---|---|---|
|
LF21633
|
COPPER TUBE3/8OD X 5M 0.76mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21572
|
COPPER TUBE1/2OD X 5M 0.89mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21573
|
COPPER TUBE 5/8OD X 5M 1.02mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21574
|
COPPER TUBE 3/4OD X 5M 1.07mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21575
|
COPPER TUBE 7/8OD X 5M 1.14mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21576
|
COPPER TUBE1.1/8OD X 5M 1.27mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21577
|
COPPER TUBE1.3/8OD X 5M 1.40mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21578
|
COPPER TUBE1.5/8OD X 5M 1.52mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21634
|
COPPER TUBE2.1/8OD X 5M 1.78mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21579
|
COPPER TUBE2.5/8OD X 5M 2.03mm WT
|
Available after log in
|
Available after log in
|
|
|
LF21580
|
COPPER TUBE3.1/8OD X 5M 2.29mm WT
|
Available after log in
|
Available after log in
|
|
|
HD12114580H
|
COPPER TUBE 3/4 OD X 5.8M 1.14mm WT R410a
|
Available after log in
|
Available after log in
|
|
|
HD14140580H
|
COPPER TUBE 7/8OD X 5.8M 1.40mm WT R410a
|
Available after log in
|
Available after log in
|
|
|
HD18183580H
|
COPPER TUBE 1 1/8OD X 5.8M 1.83mm WT R410A
|
Available after log in
|
Available after log in
|
|
|
HD22203580H
|
COPPER TUBE 1 3/8OD X 5.8M 2.03mm WT R410A
|
Available after log in
|
Available after log in
|
|
|
HD26241580H
|
COPPER TUBE 1 5/8OD X 5.8M 2.41mm WT R410A
|
Available after log in
|
Available after log in
|
