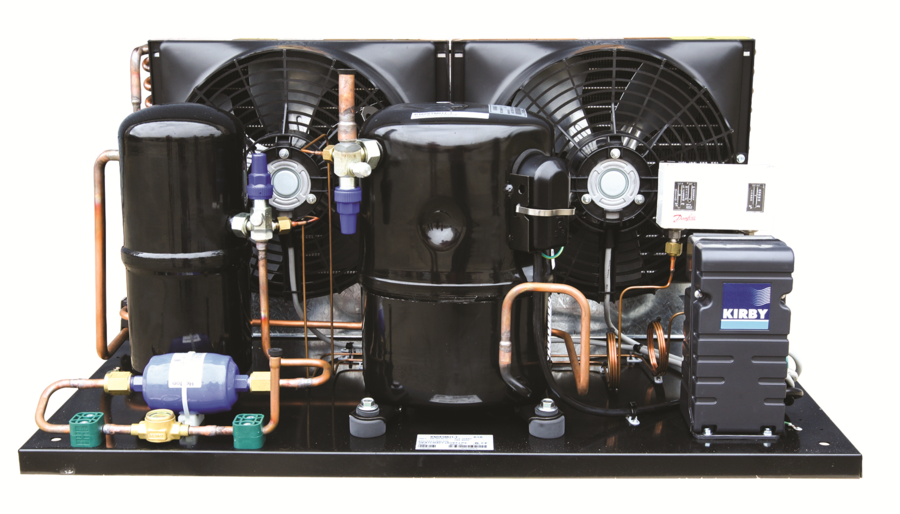

CONDENSING UNIT AW 54MGB3N
Product code:
CK2243
Manufacturer code
1SAW54MGB3N
| Product Group : | Hermetic Condensing Units |
|---|
General
| Product Group : | Hermetic Condensing Units |
|---|
Additional Info
| Family : | Nullarbor Hermetic |
|---|---|
| HP Control Device Type : | Yes |
| Liquid Line Fitted With Shut Off Valve : | Yes |
Capacity R404A
| R404A Capacity -5°C : | 4.964 kW |
|---|---|
| R404A Capacity 5°C : | 6.912 kW |
Compressor
| Compressor Model : | AW54MHG |
|---|---|
| Displacement : | 53.5 cc |
| Number Of Compressors : | 1 |
| Power Supply Compressor : | 220-240/1/50 V/Ph/Hz |
Connections
| Pipe Diameter Gas Side : | 5/8 in |
|---|---|
| Pipe Diameter Liquid Side : | 3/8 in |
Cooling Capacity R448A/R449A
| R448A/R449A Cooling Capacity -5°C : | 4.418 kW |
|---|---|
| R448A/R449A Cooling Capacity 5°C : | 6.152 kW |
Electrical
| RLA : | 12.5 A |
|---|---|
| Voltage : | 220-240/1/50 V/Ph/Hz |
Fan
| Fan Blade Size : | 300 mm |
|---|---|
| Fan Diameter : | 300 mm |
| Number Of Fans : | 2 |
General Information
| Receiver Volume : | 4.4 L |
|---|
Measurements
| Depth : | 550 mm |
|---|---|
| Height : | 421 mm |
| Net Weight : | 71 kg |
| Width : | 860 mm |
Performance
| Nominal HP : | 2-1/2 HP |
|---|
Product information
With improved performance due to the inclusion of large condensers, the Kirby® Nullarbor range delivers high output and efficiency. And because they’re from Kirby®, they’re robust and reliable – guaranteed.KEY FEATURESIncorporating the latest Kirby® BA, WJ and AW series compressors delivers reliability and proven performance.High ambient condenser optimises efficiency and airflow for continuous operation at temperatures up to 45°C ambient temperatures.Durable painted galvanised bases maximise service life.Lower noise and vibration levels through clever compressor design.Compact footprint for ease of installation.
