Aspen Silent+ Mini White Pump 45 L/H 16Db
Product code:
T0934
Manufacturer code
FP3450
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Additional Info
| Family : | Slient + |
|---|
Capacity
| Capacity : | 16 kW |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 45 L/h |
|---|---|
| Flow Rate at 10 m : | 23 L/h |
| Max Discharge Head : | 10 m |
| Max Flow Rate : | 45 L/h |
Connections
| Inlet Connection Size : | 16-26 mm |
|---|---|
| Outlet Connection Size : | 6 mm |
Electrical
| Amp : | 0.18 A |
|---|---|
| IP Class : | IP24 |
| Voltage : | 230 VAC, 0.18A, 2.1W 50/60 Hz |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Colour : | White |
|---|---|
| Max Water Flow : | 45 L/h |
| Pump Capacity : | 45 L/h |
Measurements
| Depth : | 43 mm |
|---|---|
| Height : | 54 mm |
| Length : | 277 mm |
| Weight : | 0.48 kg |
Sound Power/Pressure
| Sound Power Level : | 16 dB(A) |
|---|---|
| Sound Pressure Level @ 1 Meters : | 16 dB(A) |
Product information

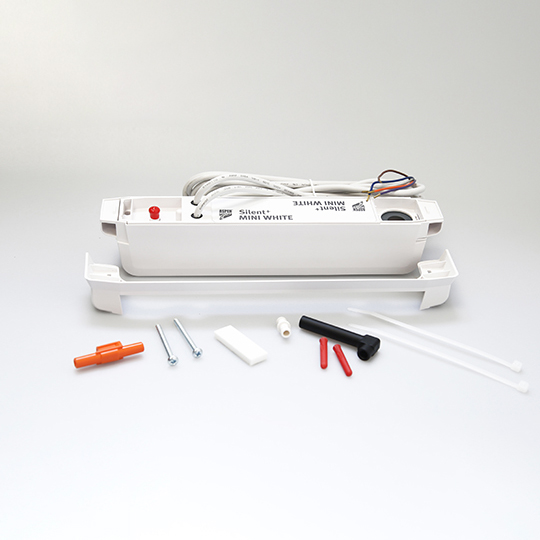

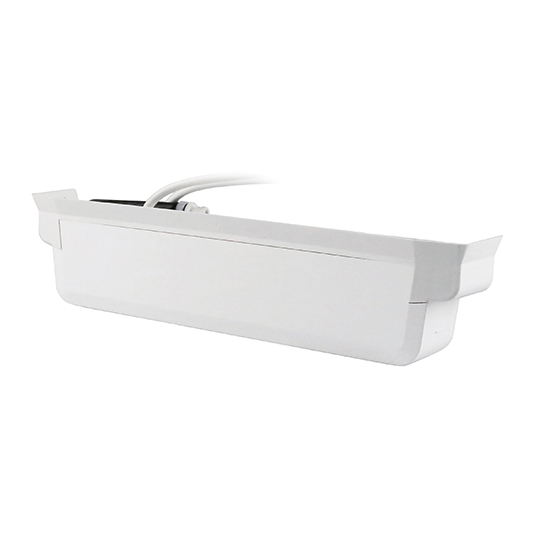

Incredibly quiet, easy to install and maintain, the Silent+ Mini White has been designed to fit either side of the evaporator unit. A double insulated reservoir eliminates condensation and is simple to unclip for cleaning and maintenance.
| File name | Extension | Size |
|---|---|---|
| Installation Manual | 915.88 KB | |
| Brochures | 117.43 KB |
