ASPEN Pump LP Cold Cabinet FP3393
Product code:
T0936
Manufacturer code
FP3393
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Capacity
| Capacity : | 460 kW |
|---|
Condensate Pumps
| Flow Rate at 0 m : | 700 L/h |
|---|---|
| Max Discharge Head : | 18 m |
| Tank Volume : | 4.6 L |
Connections
| Connection Size : | 4 x 48mm holes with plugs with 3 x inlet plug assembles |
|---|
Electrical
| Power Input : | 0.6 A |
|---|---|
| Power Supply : | 230 V |
| Protection Class : | I Appliance |
| Voltage : | 230 V |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Colour : | Silver |
|---|---|
| Max Lift : | 18 m |
| Max Pump Capacity : | 700 L/h |
Measurements
| Depth : | 237 mm |
|---|---|
| Height : | 75 mm |
| Length : | 625 mm |
Sound Power/Pressure
| Sound Power Level : | 60 dB(A) at 1M dB(A) |
|---|
Switch
| Safety Switch : | 1 A Normally closed |
|---|
Temperature
| Max Temperature : | 40 °C |
|---|
Product information

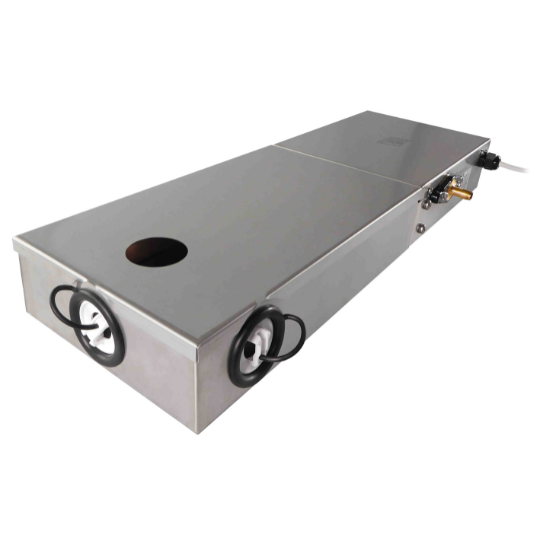

Made from robust stainless steel, this pump is extremely easy to install and maintain. With a feature designed to keep waterways moving, reducing the opportunity for biofilm to settle, the pump is placed directly below retail refrigeration cabinets removing condensate during the defrost cycle
