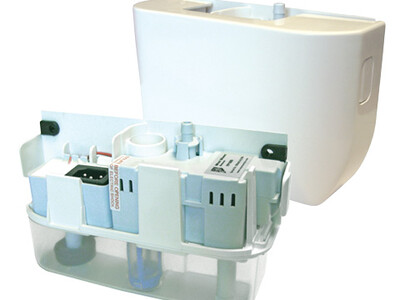

Aspen Mini Blanc
Product code:
T0938
Manufacturer code
FP1080
| Product Group : | Condensate Pumps |
|---|
General
| Product Group : | Condensate Pumps |
|---|
Condensate Pumps
| Max Discharge Head : | 10 m |
|---|---|
| Max Flow Rate : | 12 L/h |
| Max Water Temperature : | 40 °C |
| Tank Volume : | 0.24 L |
Electrical
| Amp : | 0.1 A |
|---|---|
| IP Class : | IP21 |
| Power Supply : | 230/1/50 V/Ph/Hz |
Features
| Thermal Protection : | Yes |
|---|
General Information
| Max Lift : | 10 m |
|---|---|
| Model Number : | FP1080 |
Measurements
| Depth : | 182 mm |
|---|---|
| Height : | 115 mm |
| Width : | 55 mm |
Pressure
| Water Flow Pressure : | 12 L/h |
|---|
Sound Power/Pressure
| Pump Sound Level In App : | 21 dB(A) |
|---|---|
| Sound Pressure Level : | 21 dB(A) |
Switch
| Safety Switch : | 3.0 A NC |
|---|
Product information
| File name | Extension | Size |
|---|---|---|
| Technical Literature | 852.36 KB |
