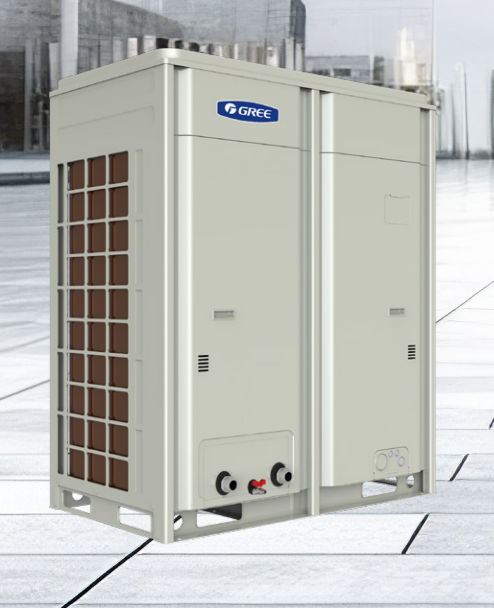

A-Series Inverter R32 Chiller 35kW
Product code:
AC7830
Manufacturer code
LSQWRF35VM/NhA-M
| Product Group : | Heat Pump Inverter Chillers |
|---|
General
| Product Group : | Heat Pump Inverter Chillers |
|---|
Air Volume/Air Flow
| Air Flow : | 2 x 6300 m³/h |
|---|
Compressor
| Compressor Type : | Gree - Landa QXAS-H80zN345H |
|---|---|
| Number Of Compressors : | 1 |
Connections
| Hydraulic Connections Diameter : | 1 1/4 in |
|---|
Cooling Capacity
| Cooling Capacity : | 32.0 kW |
|---|---|
| Cooling Capacity Conditions : | Amb temp 35 C , Water 12 C EWT/7 C LWT |
| Cooling Capacity Water 7°C/12°C : | 32.0 kW |
Electrical
| Amp : | 20 A |
|---|---|
| Power Input : | 19.2 A |
| Power Supply : | 380-415/3/50 V/Ph/Hz |
Energy Efficiency/Performance
| EER : | 2.58 |
|---|
Evaporator
| Number Of Circuits : | 1 |
|---|
Fan
| Number Of Fans : | 2 |
|---|
General Information
| Water Flow : | 91.2 m³/h |
|---|
Heating Capacity
| Heating Capacity : | 35.0 kW |
|---|---|
| Heating Capacity Conditions : | Water Temp 40 c EWT/45 C LWT |
Logistical Information
| Gross Weight : | 391.0 kg |
|---|
Measurements
| Depth : | 845 mm |
|---|---|
| Height : | 1605 mm |
| Length : | 1340 mm |
| Weight : | 379.0 kg |
Power Input
| Power Input Water 7°C/12 °C : | 11.7 kW |
|---|---|
| Power Input Water 40°C/45 °C : | 10.6 kW |
Pressure
| Max Pressure : | 46 Bar |
|---|---|
| Water Pressure Drop : | 75. kPa |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant precharged up to : | 5.5 kg |
Sound Power/Pressure
| Sound Power Level : | 62 dB(A) |
|---|
Temperature
| Flow Water Temp Range Cooling : | 5 to 20 °C |
|---|---|
| Flow Water Temp Range Heating : | 35 to 50 °C |
| Temperature Range Cooling : | -15 to 52 °C |
| Temperature Range Heating : | -20 to 410 °C |
Product information
The all new Modular A-Series Inverter Heat Pump Water Chillers are capable of performing cooling all year round with high energy efficiency. They do not require cooling towers and are quite applicable to water deficient areas. These chillers can be widely used in new or retrofitted buildings of various sizes such as hotels, apartments, restaurants, office buildings, shopping malls, theatres, gyms, workshops and hospitals. Air cooled heat pumps for production of heating or cooling water with inverter scroll compressors, R32, cooling capacity 32~130kW, heating capacity 36~140kW.High Efficiency Shell and Tube Heat ExchangerThe Gree A-Series Inverter Chillers utilise high efficiency shell and tube heat exchangers. Internal baffles ensure the water mixes thoroughly in the heat exchanger to achieve a higher rate of heat transfer. The Gree heat exchangers provide advantages over other types of heat exchangers. The tube spacing virtually eliminates clogging due to foreign matter accumulating from poor water quality or scaling. Low Noise FansThe high efficiency and low noise fan blades and motors as well as the optimized air passage can greatly lower the operation noise of the unit. The addition of a quiet mode also reduces night time noise for an ultra quite environment. Gold Fin CoilThe new Gree A-Series Inverter Chiller features Gold Fin coating on the air cooled coil. This offers greater resistance to corrosive elements. Gold Fin coils perform 20x better under salt spray testing than Blue Fin coils. Gold Fin is a hydrophilic coating which repels water. Compressor Operation BalanceThe Gree A-Series compressor operation technology ensures that each compressor operates in turn. This reduces the number of stop start cycles on an individual compressor to maximise their lifespan.Comfort and Energy EfficiencyThe inverter technology can quickly respond to load changes and lead to decreased water temperature fluctuations and better comfort. This also leads to better energy usage. Variable Frequency Fixed Frequency
