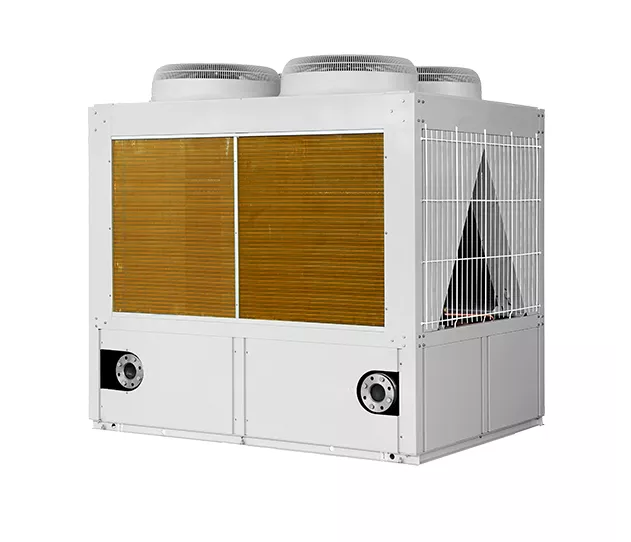

A-Series Inverter Heat Pump R32 Chiller 130kW
Product code:
AC7834
Manufacturer code
LSQWRF130VM/NhA-M
| Product Group : | Heat Pump Inverter Chillers |
|---|
General
| Product Group : | Heat Pump Inverter Chillers |
|---|
Air Volume/Air Flow
| Air Flow : | 62000 m³/h |
|---|
Compressor
| Compressor Model : | Gree Landa QXAS-H80zN345H |
|---|---|
| Number Of Compressors : | 4 |
Connections
| Hydraulic Connections Diameter : | 3 in |
|---|
Cooling Capacity
| Cooling Capacity : | 130 kW |
|---|---|
| Cooling Capacity Conditions : | Ambient 35 C , Water Temp 12 C EWT/7 C LWT |
| Cooling Capacity Water 7°C/12°C : | 130 kW |
Description
| Short Description : | Gree A Series Inverter Chillers are equipped with an advanced microcomputer control system complete with powerful error diagnostics. Some of the main protection functions are:• Compressor HP• Compressor Overload• Antifreeze Control• High Discharge Tempera |
|---|
Electrical
| Input (Cooling) : | 43.9 kW |
|---|---|
| Input (Heating) : | 41 kW |
| Max Current : | 67.4/62.9 A |
| Power Supply : | 380-420/3/50 V/Ph/Hz |
Energy Efficiency/Performance
| COP : | 3.34 |
|---|---|
| EER : | 2.96 |
Evaporator
| Number Of Circuits : | 4 |
|---|
Fan
| Number Of Fans : | 4 |
|---|
General Information
| Colour : | Beige |
|---|---|
| Water Flow : | 372.6 L/h |
Heating Capacity
| Heating Capacity : | 137 kW |
|---|---|
| Heating Capacity Conditions : | Water Temp 40 C EWT/ 45C LWT |
Measurements
| Depth : | 1980 mm |
|---|---|
| Height : | 2120 mm |
| Length : | 2305 mm |
| Weight : | 1286 kg |
Pressure
| Diff Pressure Water 7°C/12°C : | 2.5-6 kPa |
|---|---|
| Water Pressure Drop : | 60 kPa |
Refrigerant
| Refrigerant : | R32 |
|---|---|
| Refrigerant Charge : | 4 x 5.5 kg |
Sound Power/Pressure
| Sound Power Level : | 69 dB(A) |
|---|
Temperature
| Flow Water Temp Range Cooling : | 5 to 20 °C |
|---|---|
| Flow Water Temp Range Heating : | 35 to 50 °C |
| Outdoor Operating Temp. Range (Cooling) : | -15 to 52 °C |
| Outdoor Operating Temp. Range (Heating) : | -20 to 40 °C |
Product information
The all new Modular A-Series Inverter Heat Pump Water Chillers are capable of performing cooling all year round with high energy efficiency. They do not require cooling towers and are quite applicable to water deficient areas. These chillers can be widely used in new or retrofitted buildings of various sizes such as hotels, apartments, restaurants, office buildings, shopping malls, theatres, gyms, workshops and hospitals. Air cooled heat pumps for production of heating or cooling water with inverter scroll compressors, R32, cooling capacity 32~130kW, heating capacity 36~140kW.High Efficiency Shell and Tube Heat ExchangerThe Gree A-Series Inverter Chillers utilise high efficiency shell and tube heat exchangers. Internal baffles ensure the water mixes thoroughly in the heat exchanger to achieve a higher rate of heat transfer. The Gree heat exchangers provide advantages over other types of heat exchangers. The tube spacing virtually eliminates clogging due to foreign matter accumulating from poor water quality or scaling. Low Noise FansThe high efficiency and low noise fan blades and motors as well as the optimized air passage can greatly lower the operation noise of the unit. The addition of a quiet mode also reduces night time noise for an ultra quite environment. Gold Fin CoilThe new Gree A-Series Inverter Chiller features Gold Fin coating on the air cooled coil. This offers greater resistance to corrosive elements. Gold Fin coils perform 20x better under salt spray testing than Blue Fin coils. Gold Fin is a hydrophilic coating which repels water. Compressor Operation BalanceThe Gree A-Series compressor operation technology ensures that each compressor operates in turn. This reduces the number of stop start cycles on an individual compressor to maximise their lifespan.Comfort and Energy EfficiencyThe inverter technology can quickly respond to load changes and lead to decreased water temperature fluctuations and better comfort. This also leads to better energy usage. 3.902.95Variable Frequency Fixed FrequencySCOPTwin Water Pumps (optional)Two water pumps can work alternatively with equilibrium runtimes as to extend their service life and lower maintenance difficulty.Remote On/OffThe unit can be started or stopped by the On/Off key
